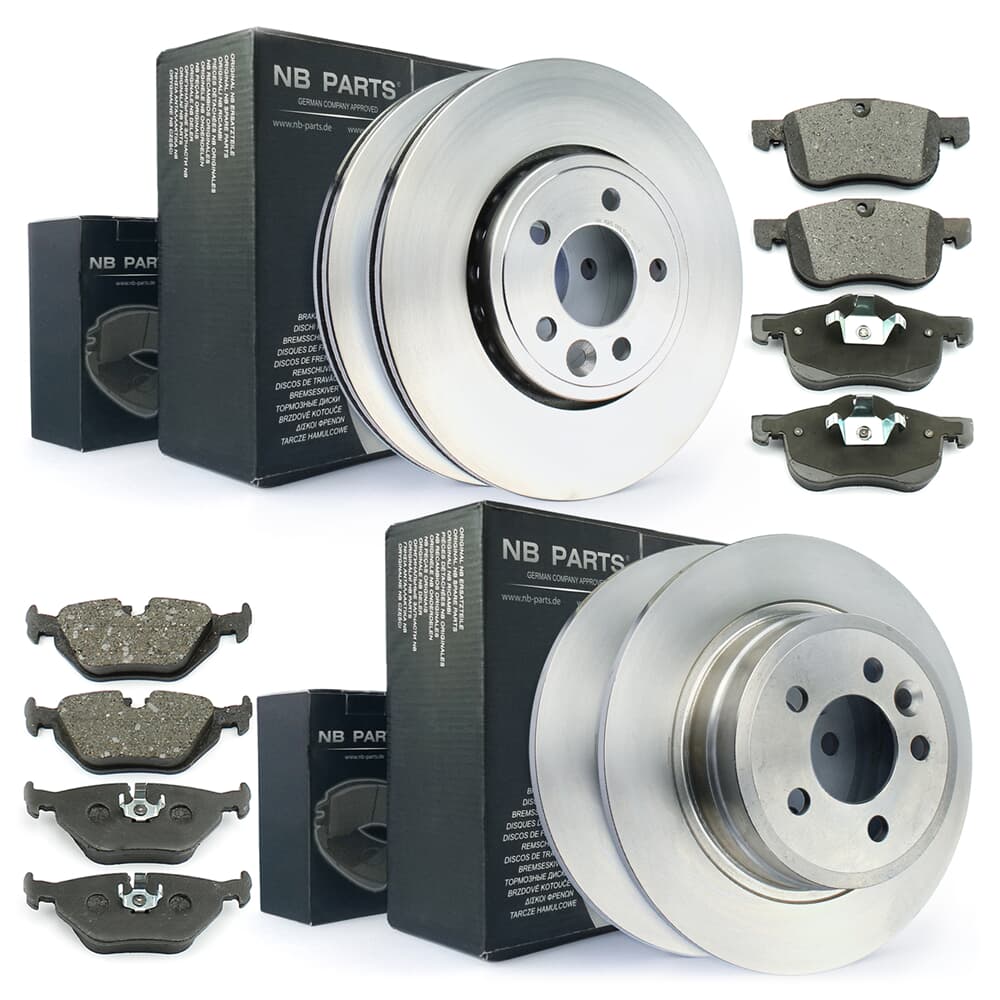

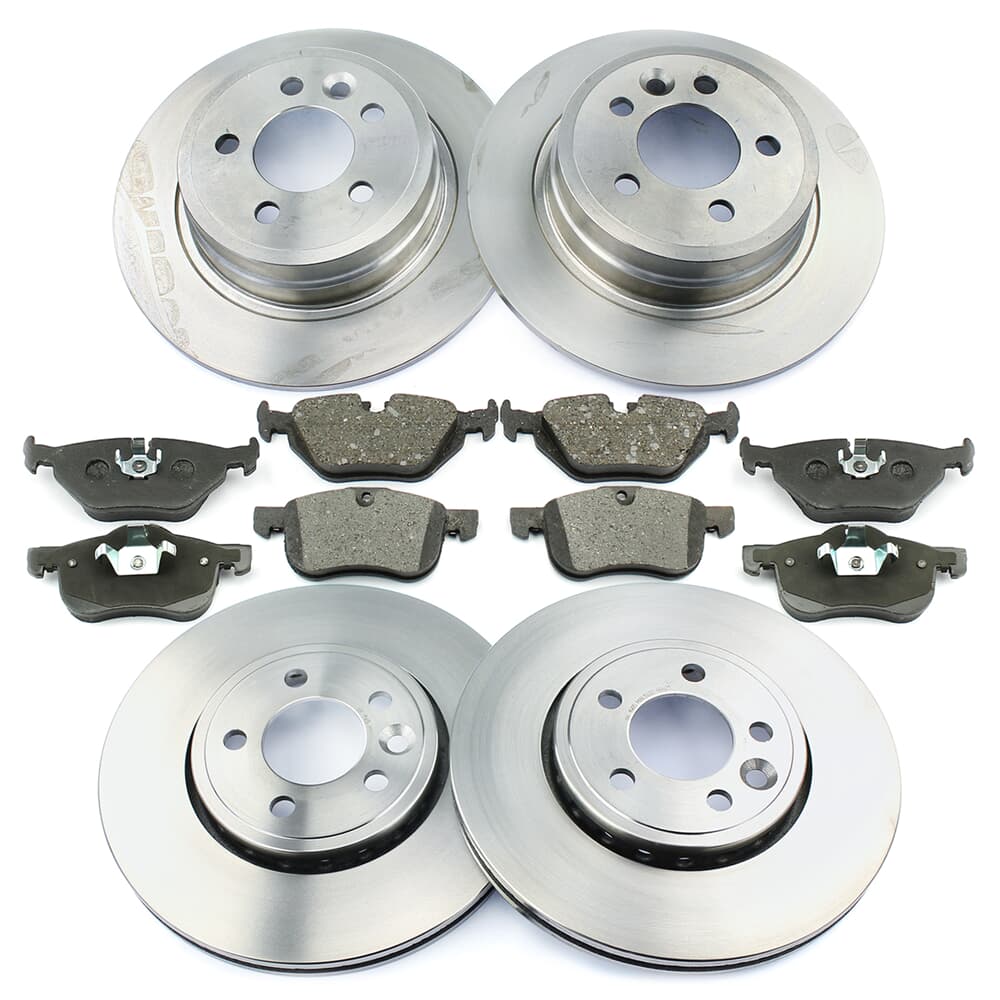

NB PARTS brake discs + brake pads front + rear

4x brake pad für the front axle

2x brake discs loaded für the front axle

4x brake pad für the rear axle

2x brake discs full / solid für the rear axle

Brake pad set, front disc brake:
Width 1 [mm]: 156.4, Height 1 [mm]: 67.2, Width 2 [mm]: 155.1, Height 2 [mm]: 70.1, Thickness / thickness [mm]: 18.4, Wear;warning contact: prepared for wear;warning indicator, Wear;warning contact: excl. Wear;warning contact, Brake system: ATE

Rear brake disc:
Diameter [mm]: 280, Brake disc thickness [mm]: 10.0, Minimum thickness [mm]: 8, Brake disc type: Solid, Number of holes: 5, Height [mm]: 61,9, centering diameter [mm]: 64, inner diameter [mm]: 161, bolt circle-Ø [mm]: 100, bore-Ø [mm]: 15

front brake disc:
diameter [mm]: 284, brake disc thickness [mm]: 22.0, minimum thickness [mm]: 19, brake disc type: loaded, number of holes: 5, height [mm]: 38.2, centering diameter [mm]: 64.2, inner diameter [mm]: 142, bolt circle-Ø [mm]: 100, bore-Ø [mm]: 15,3

Brake pad set, rear disc brake:
Width [mm]: 123, Height [mm]: 44,9, Thickness [mm]: 17,3, Wear;warning contact: prepared for wear;warning indicator, Wear;warning contact: excl. Wear;warning contact, Brake system: ATE
