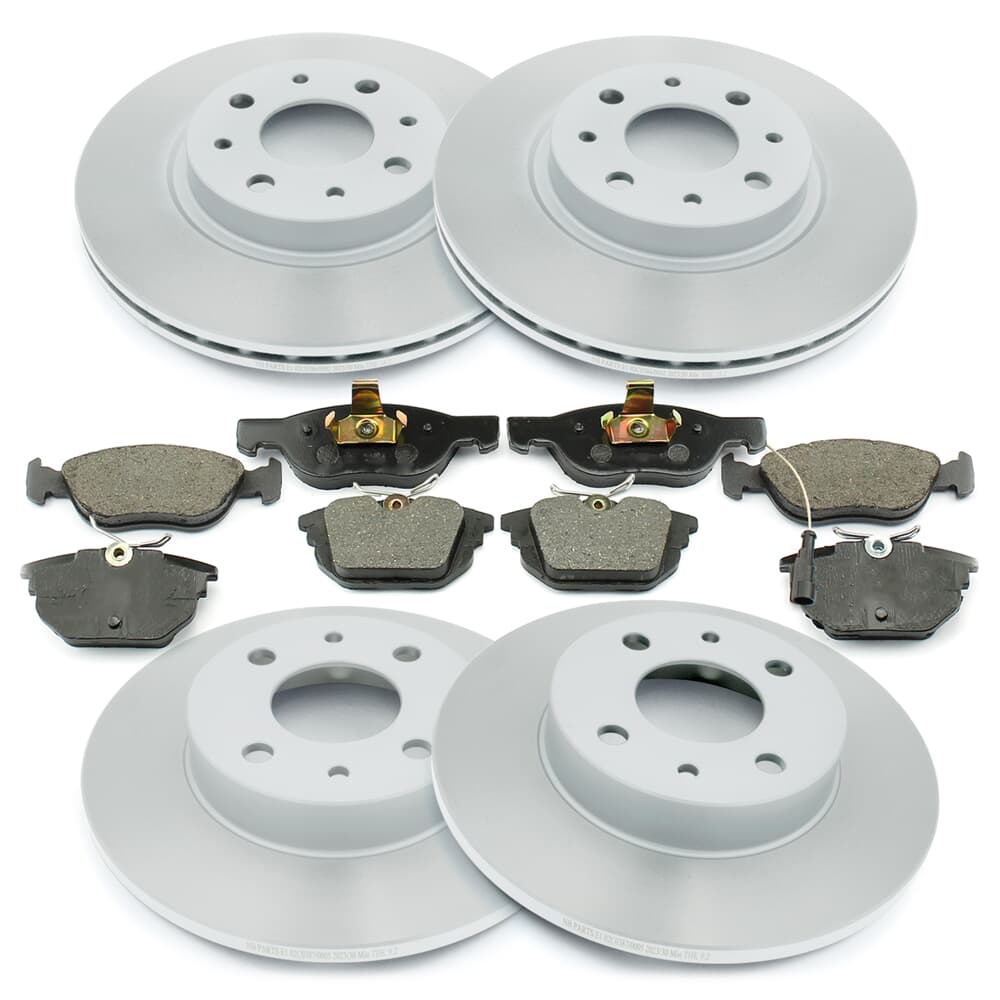

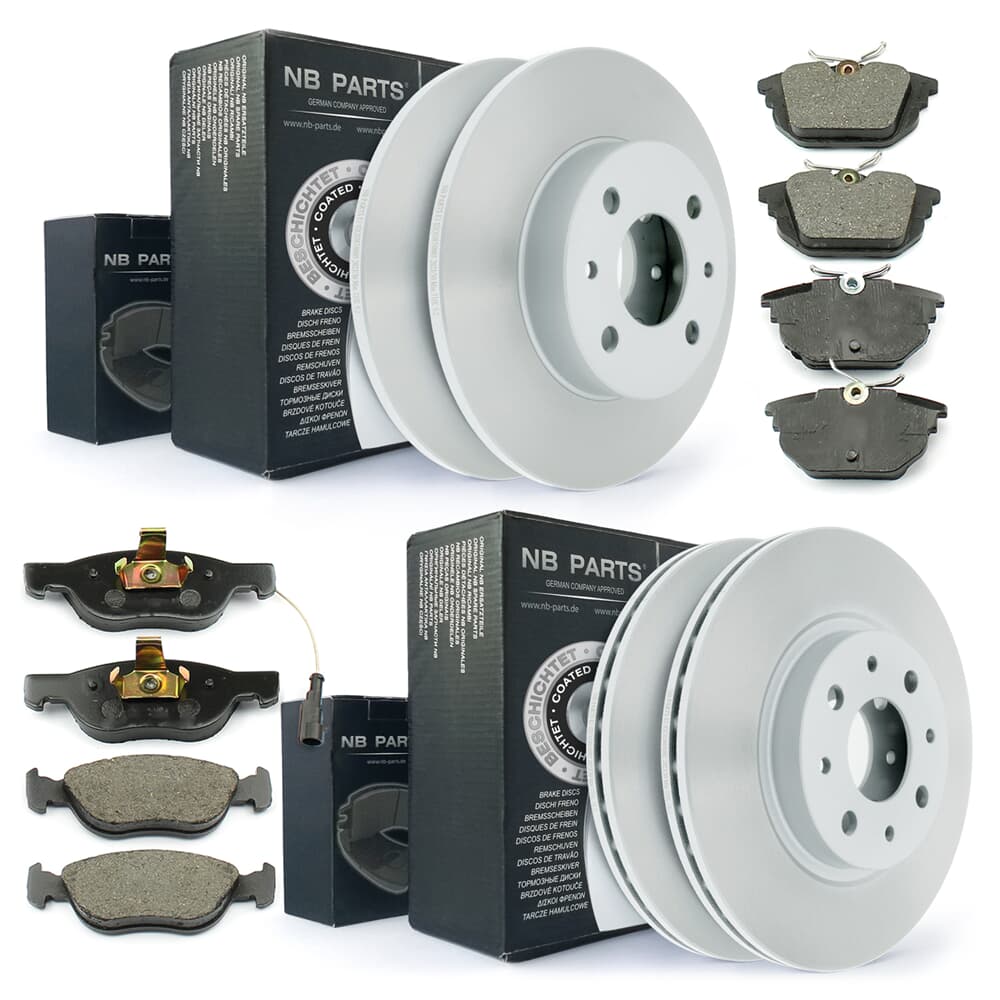

NB PARTS brake discs + brake pads front + rear

4x brake pad für the front axle

2x brake discs loaded für the front axle

4x brake pad für the rear axle

2x brake discs full / solid für the rear axle

Brake disc front:
Diameter [mm]: 257.5, Brake disc thickness [mm]: 20, Minimum thickness [mm]: 18.2, Brake disc type: belüftet, Number of holes: 4, Bolt circle-Ø [mm]: 98, Height [mm]: 40.5, Centering diameter [mm]: 59, inner diameter [mm]: 126,7, bore-Ø [mm]: 13

Brake pad set, front disc brake:
Width [mm]: 156,3, Height [mm]: 52,7, Thickness/Strength [mm]: 17,9, Wear;warning contact: incl. Wear;warning contact, Warning contact length [mm]: 198, Brake system: ATE

Rear brake disc:
Diameter [mm]: 240.5, Brake disc thickness [mm]: 11, Minimum thickness [mm]: 9.2, Brake disc type: Solid, Number of holes: 4, Bolt circle-Ø [mm]: 98, height [mm]: 40, centering diameter [mm]: 59, inner diameter [mm]: 123, bore-Ø [mm]: 13

Brake pad set, rear disc brake:
Width [mm]: 87, height [mm]: 44,6, thickness/strength [mm]: 14,2, wear;warning contact: excl. Verschlelei;warnkontakt, Brake System: Lucas / TRW
